Simplified calculation of month-on-month annualized peritoneal dialysis associated peritonitis rate – Validation in ANZDATA, NZ PD and RDPLF registries

Simplified Calculation of Monthly PD Peritonitis Rate

Abstract

Peritonitis is the most important therapy-related complication of peritoneal dialysis (PD). Monthly or quarterly PD peritonitis rate statistics are used to identify special cause variation within or between individual PD centres, to highlight any need for quality improvement. Unfortunately, many PD centres do not accurately “patient flow” (i.e., when patients start and finish on PD), and therefore cannot measure PD peritonitis rate. In this study, we validate an estimating formula for month-on-month annualised PD peritonitis rate, that calculates time-at-risk from “patient stock” (i.e., the number of prevalent patients on PD at the beginning and end of the month). We compared centers’ estimated peritonitis rates with gold-standard measurements in the Australia and New Zealand Dialysis and Transplant Registry / New Zealand PD Registry, and Le Registre de Dialyse Péritonéale de Langue Française et hémodialyse à domicile. A total of 268 centers from 9 countries with 1,020,260 patient-months of follow-up and 19,669 episodes of peritonitis were modeled. Overall agreement was excellent between estimates and gold-standard measurements with a concordance correlation coefficient (CCC) of 0.998 (95% confidence interval [CI] 0.998-0.998) in both registries. There was statistically significant lower agreement for smaller centers, although the CCC was still greater than 0.995. There were no instances of clinically significant misclassification of centers as being compliant or non-compliant with PD peritonitis standards with the use of the estimating formula. The simplified method of calculating the PD peritonitis rate is accurate and will allow more centers around the world to measure, report, and work on reducing PD peritonitis rates.

INTRODUCTION

The identification of excess peritonitis or high peritonitis rates is essential for quality control within peritoneal dialysis (PD) services. Traditionally, this is ascertained as special cause variation in PD peritonitis rates at a unit level, calculating rates of PD peritonitis from the number of episodes, as a function of PD patient time-at-risk [1]. The recommended computation uses “patient flow” data over a period of observation - that is, calculating PD time-at-risk function as the number of PD patient-days at risk, as the cumulative total of each patient’s number of days on PD from their starting and finishing dates.

\documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle \frac{\text{Number of PD peritonitis episodes during Year for N patients}}{\sum_{i=1}^{N} \left( \frac{\text{Days on PD during Year for Patient } i}{365.25} \right)} \end{document} Eq1

Recently, we validated a simplified method of calculating PD peritonitis rate using patient time-at-risk from “patient stock” data - that is, calculating PD patient-days from the number of prevalent PD patients at the center at the start of the period of observation and the corresponding number at the end. This enables calculations of PD peritonitis rates in the absence of accurate “patient flow” data (that is, the dates when patients start and finish PD), so long as there is reliable “patient stock” data (that is, the numbers of prevalent patients on PD at given points in time) [2].

\documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle \frac{\text{Number of PD peritonitis episodes during Year for a given center}}{\left( \frac{N_{\text{Year Start}} + N_{\text{Year Finish}}}{2} \right)} \end{document} Eq2

While this estimating formula has been validated for annual PD peritonitis rates, it would be convenient to extend this concept to the calculation of month-on-month annualized PD peritonitis rates (here-after referred to as “monthly peritonitis rates”), a commonly used PD quality indicator. This simplification also replaces the traditional time-at-risk denominator with one calculated from “patient stock” - that is, the number of prevalent PD patients in a center at the beginning and end of each month, a more easily accessible statistic for most PD centers. The algebraic equivalence between the estimates and gold-standard measurements relies on two key assumptions: namely, that patients start and finish PD at a uniform rate throughout the months (that is, at random), and that the number of patients who start on PD after the beginning of the month and also finish before the end of the month is small.

\documentclass{article} \usepackage{amsmath} \begin{document} \displaystyle \left[ \frac{\text{Number of PD peritonitis episodes during Month for a given center}}{\left( \frac{N_{\text{Month Start}} + N_{\text{Month Finish}}}{2} \right)} \right] \times 12 \end{document} Eq3

In this paper, we explore the accuracy of the estimating formula in two databases. The first is Australia and New Zealand Dialysis and Transplant Registry (ANZDATA) / New Zealand (NZ) PD Registry. The second is Le Registre de Dialyse Péritonéale de Langue Française et hémodialyse à domicile (the RDPLF).

METHODS

Study Design

We performed an observational cohort study to measure agreement between gold-standard annual PD peritonitis rates and those estimated using the simplified formula. The National (NZ) Health and Disability Ethics Committee (IORG0000895) approved the study protocol, and waived the need for patient consent under the provisions for observational research.

Patient Participants and Data Source

The ANZDATA Registry collects data on all kidney failure (KF) patients in Australia and New Zealand. For the purposes of this study, PD patients are defined as those with a diagnosis of KF for whom PD is an indefinite treatment. Data on PD peritonitis has been collected since 2004 (in NZ, directly by ANZDATA until June 2021, but through data linkage with the NZ PD Registry thereafter). Details of the structure and methods of all registries are reported elsewhere (www.anzdata.org.au, www.pdregsitry.org.nz, [3];[4];[5]).

The RDPLF collects corresponding data on all KF patient on PD in Mainland France, as well as data from larger PD centres in Algeria, Francophone Belgium, the Kingdom of Morocco and Southern Provinces, Luxembourg, Francophone Switzerland, and Tunisia. PD peritonitis has been collected since the registry’s inception in 1986. Details of the structure and methods of the RDPLF is reported elsewhere (https://rdplf.org/ [6]).

We created a study cohort from the two registries. In ANZDATA, this comprised children and adults with KF on PD from 1-Jan-2004 to 31-December-2019. In the RDPLF, the study cohort comprised corresponding adult patients between the dates of 1-Jan-2000 and 31-December-2020.

Primary Exposure and Outcome Variables

The primary exposure in this study is PD peritonitis, as recorded in the respective registries based upon the opinion of the treating physician / PD team. Gold-standard month-on-month annualized PD peritonitis rate measurements were performed using Equation 1 above (modified for a monthly calculation), and estimates from Equation 3.

Data Measurement and Quantitative Variables

We also used patient and center characteristics in our models, to identify any effect modification on concordance statistics arising from variation in patient case mix between centers. In ANZDATA / NZ PD Registry models, potential effect modifiers were: country, age at PD inception, PD sub-modality (automated PD continuous ambulatory PD ), gender, ethnicity (Caucasian / other, Aboriginal or Torres Strait Islander, Asian, NZ Maori, Pacific peoples), primary kidney disease (diabetic nephropathy, ischemic / hypertensive nephropathy, glomerulonephritis, other), late referral for nephrology pre-dialysis care (<3 months before dialysis inception), and rurality (living in a major city, living in a regional town or remotely). Corresponding characteristics in RDPLF models were: country, age at PD inception, PD sub-modality (APD, CAPD), gender, diabetes mellitus (none, type 1 or type 2), and medical co-morbidity (Charlson co-morbidity index [CCI][7]).

Statistical Methods

We assessed agreement between gold-standard and estimated monthly PD peritonitis rates using concordance statistics. As described in our previous article [2], the relationship-scale framework underpins Lin’s implementation of the concordance correlation coefficient (CCC), which combines measures of both precision (Pearson correlation coefficient) and accuracy (the bias-correction factor). The combination of these statistics described how far the observed data deviate from the line of perfect concordance (that is, the line at 45 degrees on a square scatterplot). Lin’s CCC increases in value as a function of the tightness of the data about its reduced major axis (the precision of the estimation) and the nearness of the data’s reduced major axis to the line of perfect concordance (the accuracy of the estimation) [8];[9];[10];[11]. The data-scale framework underpins Bland and Altman’s limits-of-agreement (LoA) procedure, which is complementary to the relationship-scale approach [12].

Effect modification was ascertained by comparing concordance statistics between sub-groups of centers, sorted by their patient case mix and center characteristics. For example, in Australia and New Zealand centers during June 2004, 2 subgroups of centers were created according proportion of their patients who live either regionally or remotely (>median for all centers in June 2004 versus < median). We then checked for significant differences in Lin’s CCC between each subgroup. In ANZDATA, we assessed for effect modification by the following factors: country (Australia versus New Zealand), pediatric [< 18 years] versus adult [>= 18 years]), size of PD population, proportion of patients on APD, proportion of males, proportion with indigenous or Pacific ethnicity, proportion with high-risk primary kidney disease (ischemic or diabetic nephropathy), late referral for nephrology pre-dialysis care, and rurality. In RDPLF, the corresponding assessments involved: country (France, Algeria, Francophone Belgium, the Kingdom of Morocco and Southern Provinces, Luxembourg, Francophone Switzerland, and Tunisia), size of PD population, mean age of patients at PD inception, proportion of patients on APD, proportion of males, proportion of patients with diabetes mellitus, and presence and extent of medical co-morbidity (> median CCS versus < median CCS).

Comparisons of CCC between subgroups were made using a z-test with a null hypothesis that the difference between CCC was of zero. For subgroups of more than two, comparisons were made by ANOVA [13].

In all analyses, and error trap was utilized to exclude those centers with an annualized PD peritonitis rate > 10 episodes per patient-year when measured month-on-month.

RESULTS

Table I.Summary characteristics of centers in Australia and New Zealand 2004 - 2019

		N	Median	P25	P75
PD centers	Total	80
	New Zealand	12
	Australia	68
Total center-months		12,851
Patient	Stock (N @ end of month)		27	11	62
	Flow (total N during month)		29	11	64
Age (years)	@ PD start		58.37	55	61.33
Gender*	Male		0.58	0.5	0.66
	Female		0.42	0.34	0.50
Residential status*	Major city		0.66	0	0.89
	Regional		0.29	0.08	0.75
	Remote		0	0	0.04
Referral for RRT*	Late		0.17	0.11	0.25
	Timely		0.82	0.74	0.88
Ethnicity*	Caucasian / other		0.79	0.60	0.9
	Aboriginal / Torres Strait Islander		0	0	0.06
	Asian		0.07	0	0..8
	NZ Maori		0	0	0.03
	Pacific People		0	0	0.04
Primary kidney disease*	Diabetic		0.28	0.17	0.37
	Hypertensive / ischaemic		0.13	0.06	0.19
	Glomerulonephritis		0.25	0.18	0.32
	Other		0.29	0.21	0.40
Modality*	APD		0.6	0.33	0.8
	CAPD		0.4	0.2	0.67

Table II.Summary characteristics of centers in RDPLF 2000-202

	N		Median	P25	P75
PD centers	Total	188
	Algeria	1
	Belgium	17
	France	155
	Luxembourg	1
	Morocco and Southern Provinces	5
	Switzerland	3
	Tunisia	6
Total center-months		38,093
Patient	Stock (N @ end of month)		16	8	26
	Flow (total N during month)		17	9	27
Age (years)	@ PD start		66.32	60.98	70.82
Gender*	Male		0.58	0.5	0.68
	Female		0.42	0.32	0.5
Diabetes* mellitus			0.3	0.19	0.41
Charlson Comorbidity Index			5.75	4.83	6.51
Modality*	APD		0.37	0.20	0.57
	CAPD		0.63	0.43	0.80

Descriptive Data

We modelled 268 centers from 9 countries with 1,020,260 patient-months of follow-up (647,581 RDPLF, 372,679 ANZ). There were 19,669 episodes of peritonitis over this period. Summary statistics of center characteristics (or more accurately, summary statistics of each center-month characteristics) are shown inTable I and Table II. Fifteen center-months from ANZDATA were excluded through the error trap of >10 episodes per patient-year (annualised), and 108 center-months from the RDPLF.

Main Results

Overall, the average agreement between estimates and gold-standard measurements of PD peritonitis rates were extremely high, as assessed using concordance statistics and Bland and Altman analysis. For ANZDATA / NZ PD, the CCC was 0.998 (95% confidence interval [CI] 0.998-0.998) and average bias (95% LoA) 0.001 (-0.086-0.088). For the RDPLF, the corresponding statistics were 0.998 (0.998-0.998) and 0.001 (-0.089-0.091), respectively.

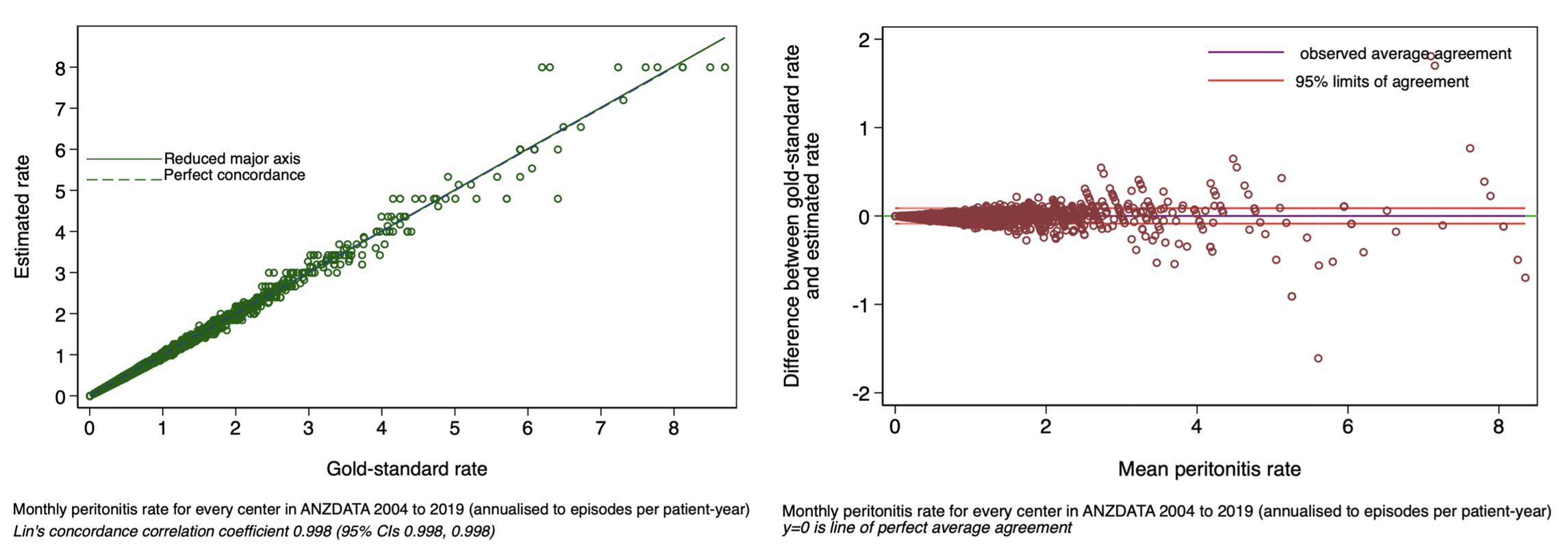

Figure 1.Graphical description of agreement between gold-standard and estimated PD monthly peritonitis rates (annualised to episodes per patient-year) for every center in ANZDATA 2004-2019

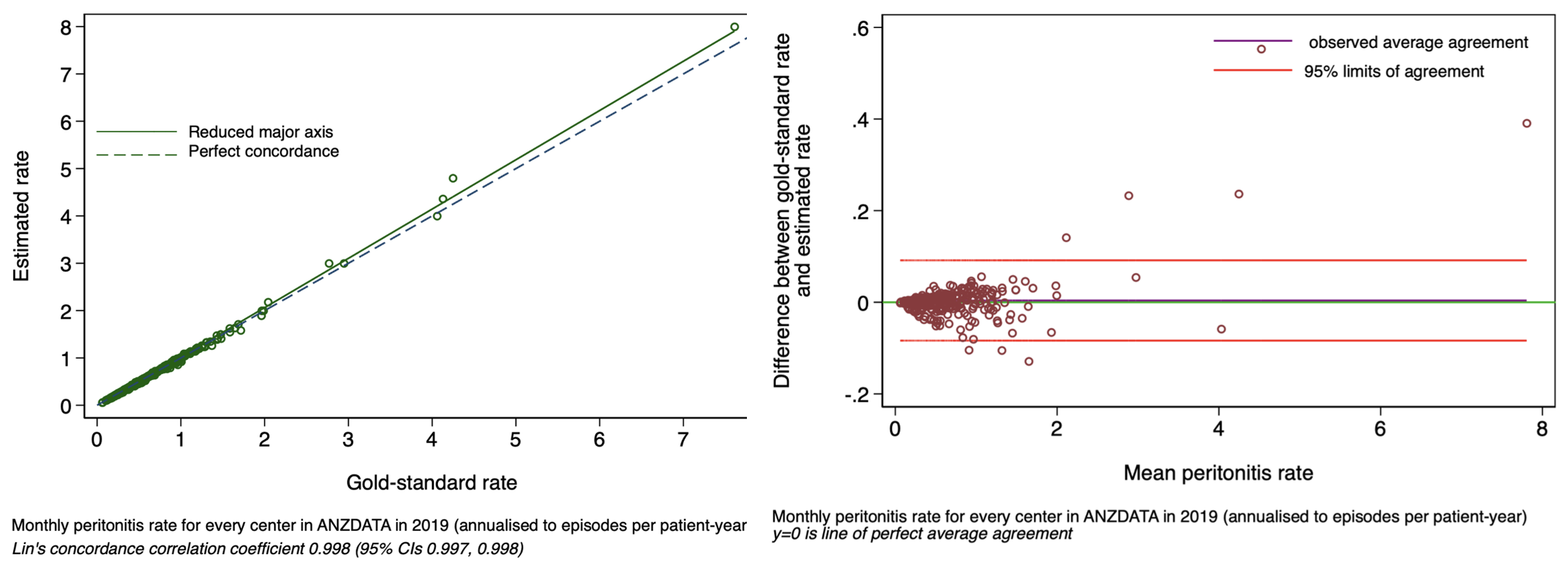

Figure 2.Graphical description of agreement between gold-standard and estimated PD monthly peritonitis rates (annualised to episodes per patient-year) for every center in ANZDATA during the latest year available (2019)

Graphical descriptions of relationship-scale and data-scale agreement for ANZDATA are shown inFigure 1 for the entire period of observation and inFigure 2 for the last year of available data (2019).Table III shows the results of testing within subgroups of centers defined by their patient case mix. Statistically, there was significantly better agreement in centers that were larger, in NZ versus Australia, less rural, with a higher proportion of patients on APD, and with a higher proportion of patients with high-risk primary renal disease. All of the agreement statistics were extremely high, however, and the differences in CCC between groups being generally less that 0.0001.

Table III.Effect modification of concordance statistics in ANZDATA / NZ PD Registry centers according to their case mix.

Characteristics		Lin’s CCC (95% Cis)	P-value of two-way interaction
Center size	> median number of patients	0.999 (0.999-0.999)	<0.0001
	< median number of patients	0.998 (0.998-0.998)
Age	Adult	0.998 (0.998-0.998)	0.11
	Pediatric	0.998 (0.998-0.998)
Country	Australia	0.998 (0.998-0.998)	<0.0001
	New Zealand	0.999 (0.999-0.999)
Indigenous / Pacific peoples	> median proportion	0.998 (0.998-0.998)	0.15
	< median proportion	0.997 (0.997-0.998)
Major city residents	>=50% of patients	0.998 (0.998-0.998)	0.008
	<50% of patients	0.998 (0.997-0.998)
High-risk primary kidney disease (diabetic / ischemic)	> median proportion	0.998 (0.998-0.998)	0.0001
	< median proportion	0.998 (0.998-0.998)
APD versus CAPD	> median proportion on APD	0.998 (0.998-0.998)	<0.0001
	< median proportion on APD	0.997 (0.997-0.997)

Graphical descriptions of relationship-scale and data-scale agreement for the RDPLF are shown in Figure 3 for the entire period of observation and in Figure 4 for the last year of available data (2020).Table IV shows the results of testing within subgroups of centers defined by their patient case mix. Like ANZDATA, agreement statistics were extremely high across all groups, with the size of any differences being small with generally less than 0.001.

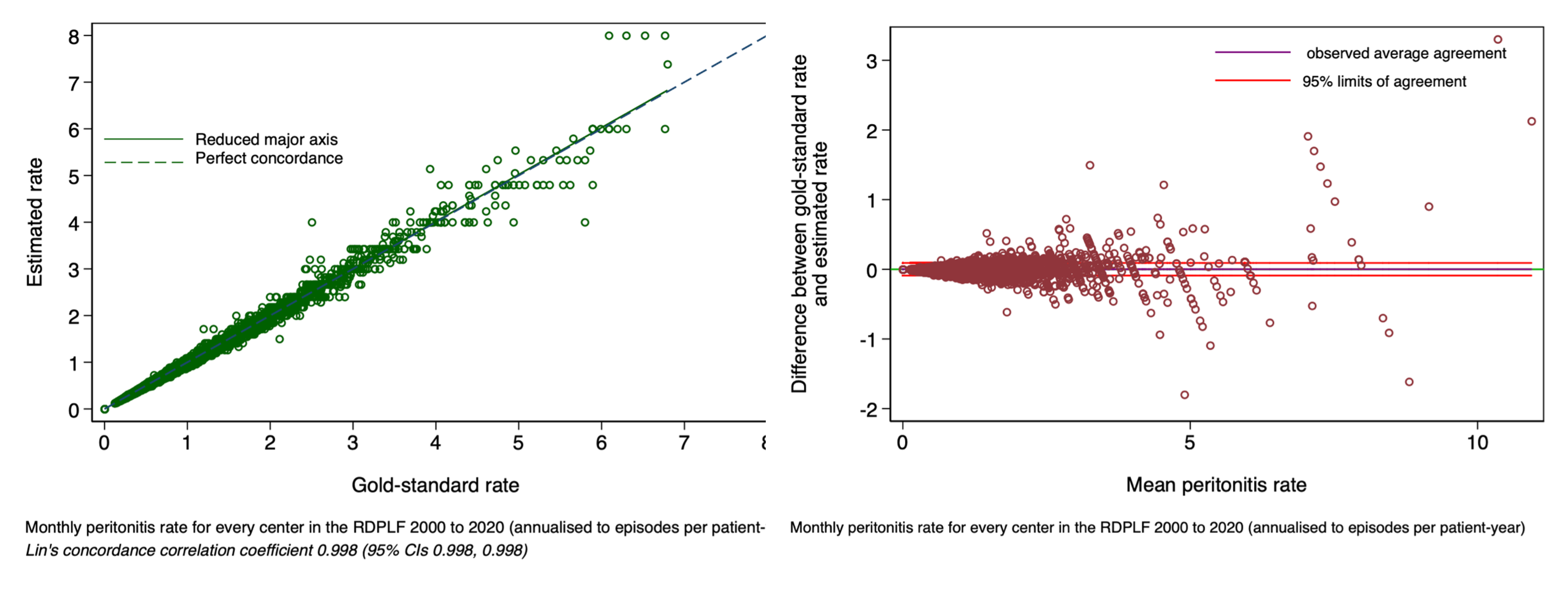

Figure 3.Example caption for this image Graphical description of agreement between gold-standard and estimated PD monthly peritonitis rates (annualized to episodes per patient-year) for every center in the RDPLF 2000-2020

Figure 4.Graphical description of agreement between gold-standard and estimated PD monthly peritonitis rates (annualized to episodes per patient-year) for every center in the RDPLF during the latest year available (2020).

Table IV.Effect modification of concordance statistics in the RDPLF centers according to their case mix.

Characteristics		Lin’s CCC (95% Cis)	P-value of two-way interaction
Center size	> median number of patients	0.999 (0.999-0.999)	<0.0001
	< median number of patients	0.998 (0.998-0.998)
Age	> median	0.998 (0.998-0.998)	0.0002
	< median	0.998 (0.998-0.998)
Country	Algeria	n/a	<0.0001
	Belgium	0.998 (0.998-0.998)
	France	0.998 (0.998-0.998)
	Luxembourg	0.998 (0.997-0.999)
	Morocco and Southern Provinces	0.994 (0.993-0.994)
	Switzerland	0.999 (0.999-0.999)
	Tunisia	0.999 (0.999-0.999)
Charlson Comorbidity Index	> median score	0.998 (0.998-0.998)	<0.0001
	< median score	0.998 (0.998-0.998)
APD versus CAPD	> median proportion on APD	0.999 (0.999-0.999)	0.0001
	< median proportion on APD	0.997 (0.997-0.998)

To ascertain practical limits for the use of the estimating formula, we examined the effects of estimation on misclassification – that is, whether center-months were classified as having estimated rates above or below the International Society of Peritoneal Dialysis (ISPD) standard of 0.4 episodes per patient-year [1], when the actual rate showed the opposite. In ANZDATA there were 105 centre-months in ANZDATA out of 12,651 that were misclassified by the estimating formula. The delta between the estimated and actual rates for misclassified months are shown in Figure 5. It can be seen that these instances occurred when the actual rates were close to 0.4 episodes per patient-month, with estimates that were close but nonetheless directionally on the opposite side of the 0.4 threshold. In RDPLF, there were 130 centre-months out of 38,093 that were correspondingly misclassified. Figure 6 shows the corresponding delta, with the same insight that misclassifications occurred when the actual rates were close to 0.4 episodes per patient-month.

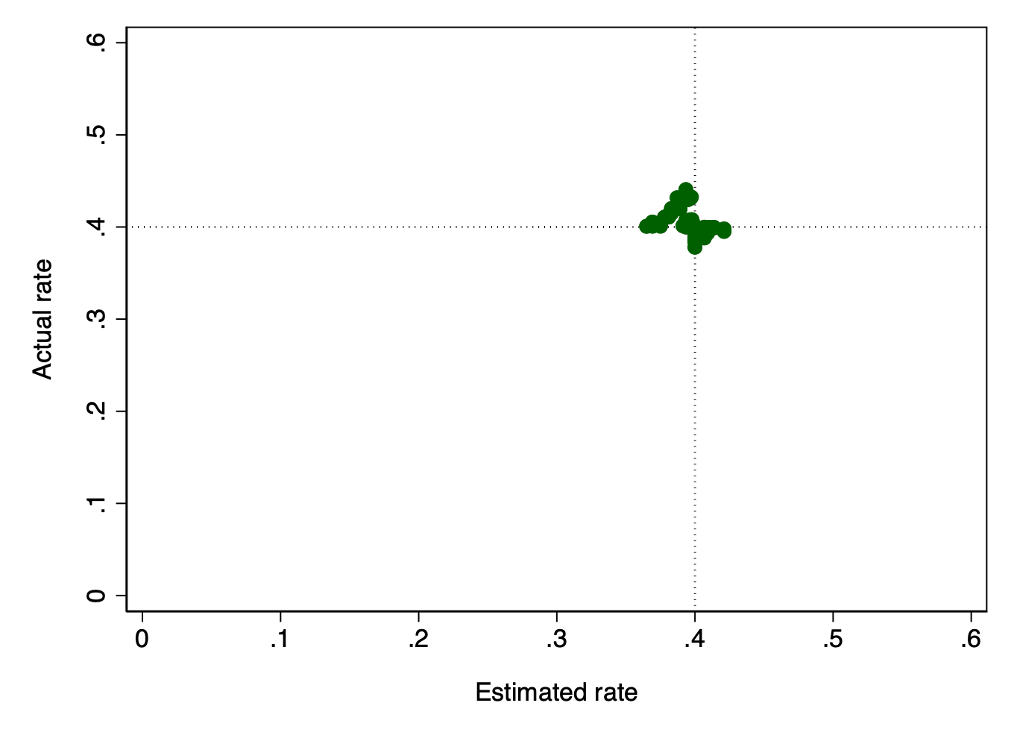

Figure 5.Example caption for this image Comparison of estimated versus actual PD peritonitis rates in ANZDATA, for centre-months that were misclassified by the estimating formula as being incorrectly above or below the ISPD threshold of 0.4 episodes per patient-month.

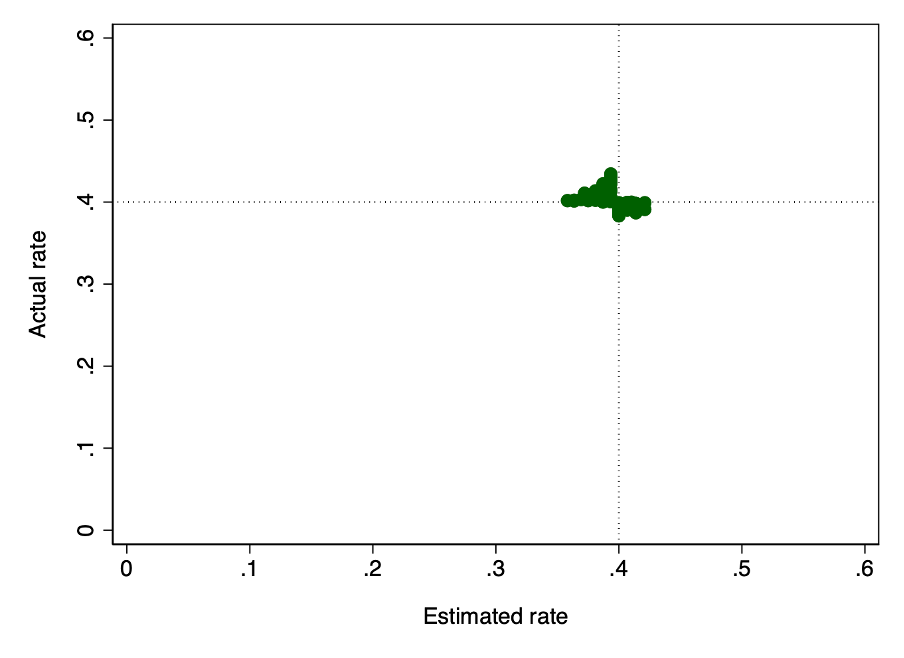

Figure 6.Example caption for this image

In ANZDATA, 13 centres had more than 5% of centre-months where agreement between estimated and actual peritonitis rates fell outside Bland and Altman’s limits of agreement. Of note, these were all small centers, with an average of just over 6 prevalent patients on PD in any given month. Figure 7 shows a time series of each center’s estimated and actual peritonitis rates over the entire period of observation. Importantly, there were no instances where these centres were misclassified in terms of compliance through use of the estimating formula. In RDPLF, 12 centres had more than 5% of centre-months outside Bland and Altman’s limits of agreement. As is the case with ANZDATA, these were mostly small centers, with an average of just over 6.5 patients in any given month. Figure 8 shows a time series of their estimated and actual rates over the entire period of observation. Once again, there were no instances where such centres in RDPLF were misclassified through use of the estimating formula.

Figure 7.Time series of estimated and actual PD peritonitis rates of the 13 centres in ANZDATA with more than 5% of their monthly estimated and actual PD peritonitis rates outside Bland and Altman’s limits of agreement.

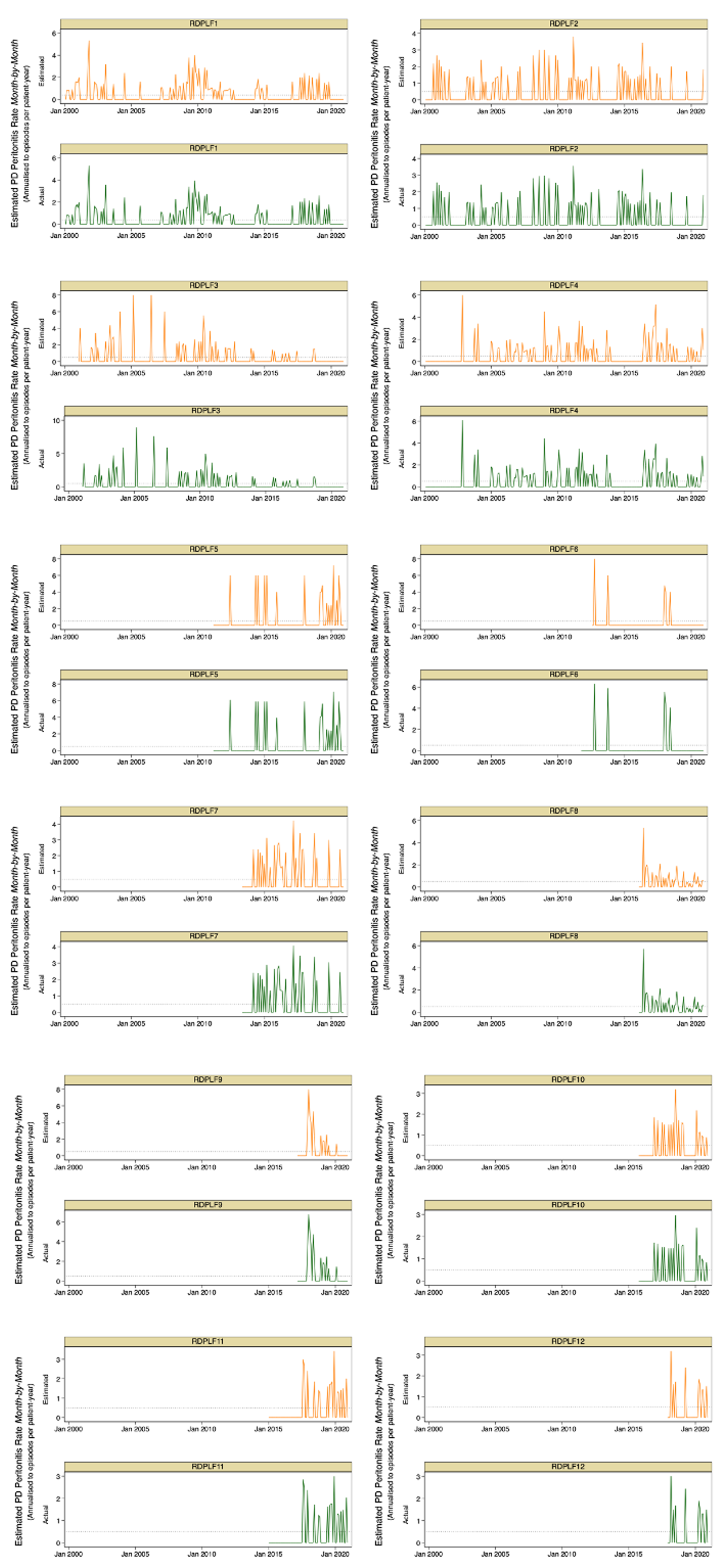

Figure 8.Example capTime series of estimated and actual PD peritonitis rates of the 12 centres in RDPLF with more than 5% of their monthly estimated and actual PD peritonitis rates outside Bland and Altman’s limits of agreement.tion for this image

DISCUSSION

In this paper, we show that month-on-month annualized PD peritonitis rate can be accurately estimated using the number of episodes of PD peritonitis for a given center over the month along with their “patient stock” (i.e., prevalent patients on PD at the start and the end of the month). This avoids the need for cumbersome measurements based on “patient flow” (i.e., number of PD patients-days during the month). We show that this estimation is almost perfect for almost every type of PD center, although it is technically most accurate in larger ones. Notwithstanding, concordance was still very good in centers of ever kind in both ANZDATA and RDPLF (Lin’s CCC > 0.99). The use of the estimating formula PD peritonitis rate in this study did not lead to any clinically significant misclassification of centres in terms of compliance with current ISPD standards for PD peritonitis rate.

It is recommended by the ISPD that centres monitor their PD peritonitis rate at short intervals during the year, to address emerging issues with the quality of their PD care [1]. In a recent systematic review, it was determined that only a minority of health jurisdictions capture PD peritonitis rates in a systematic way [14]. The reason for this is that the majority of PD centers in the world do not routinely measure or report PD peritonitis rate, and it is only those with appropriate information systems and staffing resources that are able to do so. The options of a simplified yet accurate calculation allows PD centres without optimal infrastructure and resources to measure PD peritonitis rates, and deploy what assets are available quickly and efficiently to improve clinical PD delivery in the field.

We recommend the gold-standard method (rather than this new simplified one) under certain circumstances. First, it should be used if there is a strong and unbalanced pattern to starting and discontinuation of PD at a center (e.g. when a center is losing patients or gaining them over the month in a dramatically non-linear manner). Second, any PD peritonitis rate that is close to the threshold of 0.4 PD peritonitis episodes per patient-year with the estimating formula ought to be checked with the gold-standard one – the simplified method should be used with a view to increasing the access of patients to appropriate care, not to limit it.

CONCLUSIONS

In our recent validation of an estimating formula for calculating annual PD peritonitis rates, the results from estimating and gold-standard methods were not perfectly concordant. This small deficiency in accuracy has caused concern amongst authors of ISPD guidelines, and prompted a note of caution from them around the use of the estimating formula [1]. In this study, the use of the estimating formula for month-on-month annualized PD peritonitis rate was extremely accurate, such that there is little or no chance of compromised clinical decision making from any misclassification error. A corresponding centre-by-centre analysis is underway for our original estimating formula for calculating annual PD peritonitis rates, and will be presented shortly.

Finally, there is some further work to be done to test the new estimating formula in different health jurisdictions to ensure external validity in other settings. In the meantime, we hope that this formula allows for wider monitoring and clinical quality assurance to prevent and address high rates of this complication.

Contributions: research idea and study design:

Author 1 and 3; data acquisition: All authors; data analysis/interpretation: All authors; statistical analysis: Author 1. Each author contributed important intellectual content during manuscript drafting or revision and accepts accountability for the overall work by ensuring that questions pertaining to the accuracy or integrity of any portion of the work are appropriately investigated and resolved. Author 1 takes responsibility that this study has been reported honestly, accurately, and transparently; that no important aspects of the study have been omitted, and that any discrepancies from the study as planned have been explained.

References

1. Li P.K., Chow K.M., Cho Y., Fan S., Figueiredo A.E., Harris T.. ISPD peritonitis guideline recommendations: 2022 update on prevention and treatment. Perit Dial Int. 2022; 42(2):110-53. DOI
2. Marshall M., Waters G.P., Verger C.. Peritoneal Dialysis Associated Peritonitis Rate – Validation of a Simplified Formula. Bull Dial Domic [Internet. 4(4):245-57. DOI
3. Hayat A., Collins J., Saweirs W.. Study of early complications associated with peritoneal dialysis catheters: an analysis of the New Zealand Peritoneal Dialysis Registry data. Int Urol Nephrol. 2021; 53(8):1705-11.
4. Hayat A., Saweirs W.. Predictors of technique failure and mortality on peritoneal dialysis: An analysis of New Zealand peritoneal dialysis registry data. Nephrology (Carlton. 2021; 26(6):530-40.
5. McDonald S.P., Russ G.R., Kerr P.G., Collins J.F.. ESRD in Australia and New Zealand at the end of the millennium: a report from the ANZDATA registry. Am J Kidney Dis. 2002; 40(6):1122-31.
6. Verger C., Fabre E., Veniez G., Padernoz M.C.. Synthetic 2018 data report of the French Language Peritoneal Dialysis and Home Hemodialysis Registry (RDPLF. Bull Dial Domic [Internet. 2019; 2(1):1-10. DOI
7. Charlson M.E., Pompei P., Ales K.L., MacKenzie C.R.. A new method of classifying prognostic comorbidity in longitudinal studies: Development and validation. Journal of Chronic Diseases. 1987; 40(5):373-83.
8. L.I.-K.. A concordance correlation coefficient to evaluate reproducibility. Biometrics. 1989; 45(1):255-68.
9. Lin L.I.-K.. Assay Validation Using the Concordance Correlation Coefficient. Biometrics. 1992; 48(2):599-604.
10. Lin L.I.-K.. A note on the concordance correlation coefficient. Biometrics. 2000; 56(1):324-5.
11. Krippendorff K.. Bivariate Agreement Coefficients for Reliability of Data. Sociological Methodology. 1970; 2:139-50.
12. Bland J.M., Altman D.G.. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet. 1986; 1(8476):307-10.
13. Altman D.G., Bland J.M.. Interaction revisited: the difference between two estimates. BMJ. 2003; 326(7382)
14. Marshall M.R.. A systematic review of peritoneal dialysis-related peritonitis rates over time from national or regional population-based registries and databases. Peritoneal Dialysis International. 2021; 42(1):39-47.
